Cyfres YKK (H355-630) moduron asyncronaidd tri cham foltedd uchel canolig eu maint



Trosolwg Cynnyrch



Mae gan foduron asyncronig tri cham foltedd uchel cyfres YKK (H355-630) uchder canolig chwe chanol o H355 i H630.
Mae'r gyfres hon o moduron yn mabwysiadu technoleg dadansoddi uwch mewn datblygiad, ac yn defnyddio deunyddiau o ansawdd uchel a thechnoleg prosesu gwyddonol mewn gweithgynhyrchu, gan wneud y gyfres o moduron yn cael manteision effeithlonrwydd uchel, sŵn isel, dirgryniad isel, dibynadwyedd uchel a gosod a chynnal a chadw cyfleus.
Mae'r gyfres hon o foduron yn cydymffurfio'n llawn â GB755 rhyngwladol "Cyfraddau a Pherfformiad Moduron Cylchdroi", GB10069 "Dulliau Penderfynu a Therfynau Sŵn Modur Cylchdroi", GB100693 "Dulliau Penderfynu a Therfynau Sŵn Modur Cylchdroi Rhan 3: Cyfyngiadau Sŵn", GB10068 " Mesur, Gwerthuso a Therfynau Dirgryniad Mecanyddol Moduron gydag Uchder Canolfan Siafft o 56mm ac Uchod" a safonau IEC cysylltiedig.



Cyfarwyddiadau archebu



Wrth archebu, nodwch y math o fodur, rhif polyn, foltedd cyfradd pŵer graddedig, amlder graddedig, gradd amddiffyn, dull oeri, math mowntio, math blwch terfynell, uchder, a thymheredd yr amgylchedd; os oes gennych ofynion technegol eraill ar wahân i'r safonau cenedlaethol ar y modur y bydd ein cwmni'n ei ddylunio'n benodol ar eich cyfer chi, a'i roi ar waith ar ôl llofnodi'r cytundeb technegol.

YKK H355-630 -

Disgrifiad manwl

◆ Paramedrau sylfaenol



(1) Foltedd graddedig: 6KV neu 10KV (gellir cynhyrchu foltedd arbennig yn ôl anghenion)
(2) Amledd graddedig: 50Hz (gellir cynhyrchu 60Hz yn ôl anghenion)
(3) System weithio: S1 gweithio'n barhaus
(4) Lefel amddiffyn: IP44 neu IP54
(5) Dull oeri: IC611 (modur amlder newidiol foltedd uchel yw IC616 neu IC666)
(6) Dull gosod strwythur modur: IMB3
(7) Lefel inswleiddio: dosbarth F
◆ Disgrifiad o'r model (gan gymryd YKK500-4 fel enghraifft)
Modur asynchronous math tri cham cawell Y-gwiwer; KK-aer-i-aer oerach; 500-yn cynrychioli uchder canolfan y modur o 500mm; Mae 4-yn cynrychioli 4 lefel.

20240710095812
20240710095842

◆ Nodweddion strwythurol



(1) Mae'r gyfres hon o foduron yn mabwysiadu ymddangosiad math o flwch, ac mae'r sylfaen wedi'i weldio o blatiau dur, sy'n golygu bod gan y modur nodweddion anhyblygedd da a phwysau ysgafn. Mae dyluniad optimized y strwythur modur hefyd yn gwneud y gyfres o foduron yn hawdd i'w gosod a'u cynnal.
(2) Mae gan foduron cyfres YKK oeryddion aer-i-aer ar ben y modur.
(3) Mae dyrniadau stator a rotor yn cael eu gwneud o ddalennau dur silicon di-rolio oer colled isel. Mae'r stator yn mabwysiadu strwythur pwysau allanol, mae'r weindio stator yn mabwysiadu deunydd inswleiddio dosbarth F, ac mae pennau'r coil yn cael eu gosod a'u clymu'n ddibynadwy. Ar ôl i weirio diwedd y coil gael ei gwblhau, mae angen iddo gael prawf foltedd pwls rhyng-dro a mabwysiadu'r broses paent di-doddydd trwytho pwysedd gwactod (VPI) rhyngwladol ddatblygedig.
(4) Mae gan rotor cawell y wiwer ddau strwythur: alwminiwm cast a bariau copr. Fe'i gweithgynhyrchir gan ddefnyddio prosesau weldio neu alwminiwm cast datblygedig a dibynadwy ac mae wedi cael gwiriad cydbwyso deinamig. Felly, mae'r modur yn rhedeg yn esmwyth ac yn ddibynadwy.
(5) Mae'r Bearings yn mabwysiadu dwy ffurf strwythurol: Bearings rholio a Bearings llithro, yn dibynnu ar bŵer a chyflymder y modur.

◆ Dechrau perfformiad



Gellir defnyddio'r gyfres hon o foduron i yrru peiriannau cyffredinol amrywiol. Os yw'r peiriant sy'n cael ei yrru yn bwmp dŵr neu'n gefnogwr wedi'i ddechrau â llwyth ysgafn, a bodlonir yr amodau canlynol
(a) Nid yw foltedd terfynol y modur yn ystod y broses gychwyn yn llai nag 80% o'r foltedd graddedig;
(b) Nid yw trorym gwrthiant y gefnogwr ar gyflymder graddedig y modur yn fwy na 23% o trorym graddedig y modur;
Os yw'r llwyth yn fwy na'r gofynion uchod, neu os defnyddir y modur i yrru offer mecanyddol eraill, megis melinau glo, cludwyr gwregys, melinau rholio, winshis ac offer cychwyn llwythi trwm eraill, mae'n ofynnol i'r defnyddiwr ddarparu gofynion technegol manwl, gan gynnwys y foltedd terfynell yn ystod y broses gychwyn modur, cromlin trorym gwrthiant y llwyth a momentyn llwyth syrthni (trosi i'r cyflymder modur), ac ati, i ddadansoddi a phenderfynu a oes angen dyluniad arbennig i fodloni'r gofynion llwyth.

20240710095951



Canolig H355-630




Cyfres YKK data technegol modur asyncronig tri cham foltedd uchel canolig (6KV)
Math Pŵer â sgôr
(kW)		 Cerrynt graddedig
(A)		 Llwyth graddedig Clo torque Cloi cerrynt Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (cosφ) (r/mun) (Gwerth Rtanard) (Gwerth Rtanard) (Gwerth Rtanard)
YKK355-2 185 22 93.2 0.86 2980 0.7 7.0 2.5 2120
YKK355-2 200 24 93.4 0.86 2980 0.7 7.0 2.5 2170
YKK355-2 220 27 92.5 0.85 2980 0.6 7.0 2.5 2220
YKK355-2 250 30 92.6 0.85 2980 0.6 7.0 2.5 2430
YKK355-2 280 34 92.8 0.85 2980 0.6 7.0 2.5 2460
YKK355-2 315 38 93.1 0.85 2980 0.6 7.0 2.5 2480
YKK355-2 355 42 93.4 0.86 2980 0.6 7.0 2.5 2580
YKK400-2 355 42 93.4 0.86 2980 0.6 7.0 2.5 3020
YKK400-2 400 48 93.7 0.86 2980 0.6 7.0 2.5 3050
YKK400-2 450 53 94.0 0.86 2980 0.6 7.0 2.5 3070
YKK400-2 500 59 94.2 0.86 2980 0.6 7.0 2.5 3090
YKK400-2 560 66 94.4 0.86 2980 0.6 7.0 2.5 3190
YKK450-2 560 66 94.4 0.86 2985 0.6 7.0 2.5 3500
YKK450-2 630 73 94.6 0.87 2985 0.6 7.0 2.5 3550
YKK450-2 710 83 94.7 0.87 2985 0.6 7.0 2.5 3600
YKK450-2 800 93 94.8 0.88 2985 0.6 7.0 2.5 3650
YKK450-2 900 105 95.0 0.88 2985 0.6 7.0 2.5 3750
YKK500-2 900 105 95.0 0.87 2985 0.6 7.0 2.5 4790
YKK500-2 1000 116 95.1 0.87 2985 0.6 7.0 2.5 4970
YKK500-2 1120 130 95.2 0.87 2985 0.6 7.0 2.5 5150
YKK500-2 1250 145 95.3 0.87 2985 0.6 7.0 2.5 5330
YKK500-2 1400 160 95.4 0.88 2985 0.6 7.0 2.5 5380
YKK560-2 1400 160 95.4 0.88 2985 0.6 7.0 2.5 5410
YKK560-2 1600 183 95.5 0.88 2985 0.6 7.0 2.5 5730
YKK560-2 1800 206 95.6 0.88 2985 0.6 7.0 2.5 6050
YKK560-2 2000 220 95.7 0.88 2985 0.6 7.0 2.5 6450
YKK630-2 2000 228 95.7 0.88 2985 0.6 7.0 2.5 8480
YKK630-2 2240 256 95.8 0.88 2985 0.6 7.0 2.5 8840
YKK630-2 2500 285 96.9 0.88 2985 0.6 7.0 2.5 9210
YKK630-2 2800 22 92.8 0.85 2985 0.7 6.5 2.0 9800
YKK355-4 185 22 92.8 0.85 1485 0.7 6.5 2.0 2060
YKK355-4 200 24 92.9 0.85 1485 0.7 6.5 2.0 2100
YKK355-4 220 27 93.0 0.85 1485 0.7 6.5 2.0 2170
YKK355-4 250 30 93.1 0.85 1485 0.7 6.5 2.0 2220
YKK355-4 280 34 93.2 0.86 1485 0.7 6.5 2.0 2320
YKK400-4 280 34 93.2 0.86 1485 0.7 6.5 2.0 2750
YKK400-4 315 38 93.3 0.86 1485 0.7 6.5 2.0 2800
YKK400-4 355 42 93.5 0.86 1485 0.7 6.5 2.0 2880
YKK400-4 400 48 93.7 0.86 1485 0.7 6.5 2.0 3000
YKK400-4 450 53 93.9 0.86 1485 0.7 6.5 2.0 3070
YKK400-4 500 59 94.0 0.86 1485 0.7 6.5 2.0 3160
YKK450-4 500 69 94.0 0.86 1491 0.7 6.5 2.0 2540
YKK450-4 60 66 94.2 0.86 1491 0.7 6.5 2.0 3610
YKK450-4 630 75 94.4 0.86 1491 0.7 6.5 2.0 3670
YKK450-4 710 84 84.6 0.80 1481 0.7 6.5 2.0 3970
YKK450-4 800 93 94.8 0.87 1491 0.7 6.5 2.0 4270
YKK500-4 800 93 94.8 0.87 1491 0.7 6.5 2.0 4610



Cyfres YKK data technegol modur asyncronig tri cham foltedd uchel canolig (6KV)
Math Pŵer â sgôr
(kW)		 Cerrynt graddedig
(A)		 Llwyth graddedig Clo torque Cloi cerrynt Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK500-4 900 105 94.9 0.87 1491 0.7 6.5 2.0 4750
YKK500-4 1000 115 95.0 0.87 1491 0.7 6.5 2.0 4890
YKK500-4 1120 130 95.1 0.87 1491 0.7 6.5 2.0 5030
YKK500-4 1250 144 98.2 0.88 1491 0.6 6.5 2.0 5870
YKK560-4 1250 144 95.2 0.88 1491 0.6 6.5 2.0 6110
YKK560-4 1400 160 95.3 0.88 1491 0.6 6.5 2.0 6620
YKK560-4 1600 183 95.4 0.88 1491 0.6 6.5 2.0 6810
YKK560-4 1800 208 95.5 0.88 1491 0.6 6.5 2.0 7770
YKK630-4 1800 206 95.5 0.88 1491 0.6 6.5 2.0 7970
YKK630-4 2000 229 95.6 0.88 1491 0.6 6.5 2.0 8370
YKK630-4 2240 256 95.7 0.88 1491 0.6 6.5 2.0 8870
YKK630-4 2500 285 95.8 0.88 1491 0.6 6.5 2.0 9370
YKK355-6 185 23 92.4 0.82 985 0.7 6.0 2.0 2110
YKK355-6 200 25 92.6 0.82 985 0.7 6.0 2.0 2150
YKK355-6 220 28 92.8 0.82 985 0.7 6.0 2.0 2200
YKK400-6 220 28 92.8 0.82 985 0.7 6.0 2.0 2790
YKK400-6 230 31 93.0 0.82 985 0.7 6.0 2.0 2840
YKK400-6 280 38 93.3 0.82 985 0.7 6.0 2.0 2880
YKK400-6 315 38 93.5 0.82 985 0.7 6.0 2.0 2890
YKK400-6 355 44 93.7 0.83 985 0.7 6.0 2.0 3300
YKK450-6 355 44 93.7 0.83 991 0.7 6.0 2.0 3520
YKK450-6 400 49 93.8 0.83 991 0.7 6.0 2.0 3570
YKK450-6 450 55 94.1 0.83 991 0.7 6.0 2.0 3670
YKK450-6 500 61 94.3 0.83 991 0.7 6.0 2.0 3780
YKK450-6 560 68 94.4 0.84 991 0.7 6.0 2.0 4010
YKK500-6 560 68 94.4 0.84 991 0.7 6.0 2.0 4710
YKK500-6 630 76 94.5 0.84 991 0.7 6.0 2.0 4780
YKK500-6 710 86 94.8 0.84 991 0.7 0.0 2.0 4960
YKK500-6 800 96 94.9 0.84 991 0.7 6.0 2.0 5130
YKK500-6 900 107 95.0 0.85 991 0.7 6.5 2.0 5840
YKK560-6 900 107 95.0 0.85 991 0.7 6.5 2.0 6530
YKK560-6 1000 119 95.1 0.85 091 0.7 6.5 2.0 6660
YKK560-6 1120 133 95.2 0.85 991 0.7 6.5 2.0 6750
YKK560-6 1250 147 95.3 0.86 991 0.7 6.5 2.0 6960
YKK630-6 1250 147 95.3 0.86 992 0.7 6.5 2.0 7900
YKK630-6 1400 164 95.4 0.86 992 0.7 6.5 2.0 8760
YKK630-6 1600 187 95.5 0.86 992 0.7 6.5 2.0 9090
YKK630-6 1800 210 95.7 0.86 992 0.7 6.5 2.0 9900
YKK400-8 185 25 92.5 0.78 735 0.8 5.5 2.0 2700
YKK400-8 200 27 92.7 0.78 735 0.8 5.5 2.0 2840
YKK400-8 220 29 92.9 0.78 735 0.8 5.5 2.0 2680
YKK400-8 250 33 93.0 0.79 735 0.8 5.5 2.0 3100
YKK400-8 280 38 93.2 0.79 735 0.8 5.5 2.0 3220
YKK450-8 250 33 93.0 0.79 735 0.8 5.5 2.0 3420
YKK450-8 280 36 93.2 0.79 735 0.8 5.5 2.0 3510
YKK450-8 315 41 93.4 0.79 735 0.8 5.5 2.0 3700
YKK450-8 355 46 93.5 0.79 735 0.8 5.5 2.0 3810
YKK450-8 400 51 93.7 0.80 735 0.8 5.5 2.0 3830
YKK500-8 400 51 93.7 0.80 741 0.8 5.5 2.0 4500
YKK500-8 450 57 94.1 0.81 741 0.8 5.5 2.0 4640



Cyfres YKK data technegol modur asyncronig tri cham foltedd uchel canolig (6KV)
Math Pŵer â sgôr
(kW)		 Cerrynt graddedig
(A)		 Llwyth graddedig Clo torque Cloi cerrynt Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK500-8 500 63 94.4 0.81 741 0.8 5.5 2.0 4790
YKK500-8 560 70 94.6 0.81 741 0.8 5.5 2.0 4930
YKK500-8 630 78 94.7 0.82 741 0.7 6.0 2.0 5340
YKK560-8 630 78 94.7 0.82 741 0.7 6.0 2.0 5850
YKK560-8 710 88 94.8 0.82 741 0.7 6.0 2.0 6020
YKK560-8 800 98 94.9 0.83 741 0.7 6.0 2.0 6240
YKK560-8 900 109 95.0 0.84 741 0.7 6.0 2.0 6760
YKK630-8 900 109 95.0 0.84 741 0.7 6.0 2.0 7070
YKK630-8 1000 120 95.1 0.84 741 0.7 6.0 2.0 7420
YKK630-8 1120 135 95.2 0.84 741 0.7 6.0 2.0 7760
YKK630-8 1250 150 95.4 0.84 741 0.7 6.0 2.0 8110
YKK630-8 1400 167 95.6 0.84 741 0.7 6.0 2.0 9100
YKK450-10 185 26 91.7 0.75 590 0.8 5.5 2.0 3450
YKK450-10 200 28 91.9 0.75 590 0.8 5.5 2.0 3500
YKK450-10 220 31 92.1 0.75 590 0.8 5.5 2.0 3560
YKK450-10 250 35 92.3 0.75 590 0.8 5.5 2.0 3620
YKK450-10 280 38 92.5 0.75 590 0.8 5.5 2.0 3740
YKK450-10 315 43 92.8 0.76 590 0.8 5.5 2.0 3940
YKK500-10 315 43 92.8 0.76 593 0.8 5.5 2.0 4570
YKK500-10 355 48 93.0 0.76 593 0.8 5.5 2.0 4650
YKK500-10 400 54 93.3 0.76 593 0.8 5.5 2.0 4790
YKK500-10 450 61 93.4 0.76 593 0.8 5.5 2.0 4930
YKK500-10 500 66 93.6 0.78 593 0.8 5.5 2.0 5100
YKK500-10 560 74 93.7 0.78 593 0.7 6.0 2.0 5380
YKK560-10 560 74 93.7 0.78 593 0.7 6.0 2.0 6390
YKK560-10 630 83 93.8 0.78 593 0.7 6.0 2.0 6570
YKK560-10 710 93 94.0 0.78 593 0.7 6.0 2.0 7030
YKK560-10 800 102 94.2 0.80 593 0.7 6.0 2.0 7430
YKK630-10 800 102 94.2 0.80 593 0.7 6.0 2.0 7790
YKK630-10 900 115 94.3 0.80 593 0.7 6.0 2.0 8090
YKK630-10 1000 127 94.4 0.80 593 0.7 6.0 2.0 8430
YKK630-10 1120 140 94.6 0.80 593 0.7 6.0 2.0 8820
YKK450-12 185 27 91.8 0.70 490 0.8 5.5 2.0 3900
YKK450-12 200 30 92.0 0.70 490 0.8 5.5 2.0 3920
YKK450-12 220 32 92.2 0.72 490 0.8 5.5 2.0 3980
YKK500-12 220 32 92.2 0.72 490 0.8 5.5 2.0 4680
YKK500-12 250 36 92.5 0.72 490 0.8 5.5 2.0 4840
YKK500-12 280 40 92.7 0.72 490 0.8 5.5 2.0 4980
YKK500-12 315 45 92.8 0.72 490 0.8 5.5 2.0 5220
YKK500-12 355 50 93.0 0.74 490 0.8 5.5 2.0 5450
YKK500-12 400 56 93.3 0.74 490 0.7 6.0 2.0 5700
YKK560-12 400 56 93.3 0.74 494 0.7 6.0 2.0 6130
YKK560-12 450 63 93.4 0.74 494 0.7 6.0 2.0 6390
YKK560-12 500 69 93.7 0.74 494 0.7 6.0 2.0 6630
YKK560-12 560 76 93.8 0.76 494 0.7 6.0 2.0 6930
YKK630-12 560 76 93.8 0.76 494 0.7 6.0 2.0 8240
YKK630-12 630 85 93.9 0.76 494 0.7 6.0 2.0 8450
YKk630-12 710 96 94.0 0.76 494 0.7 6.0 2.0 8670
YKK630-12 800 108 94.2 0.76 494 0.7 6.0 2.0 9110



page-935-579

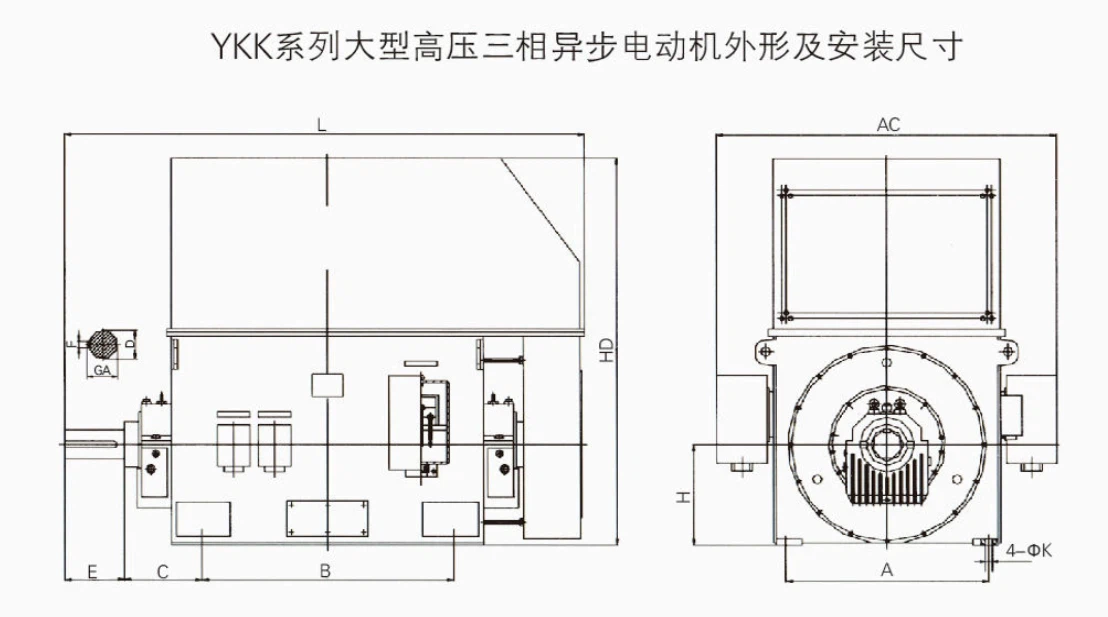

Ymddangosiad modur asyncronig tri cham foltedd uchel cyfres YKK a dimensiynau gosod (6KV)
Ffrâm Pegwn Dimensiynau gosod a goddefiannau Dimensiynau (terfyn)
A B C D E F G H K AD AD HD L
Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad
355 2 630 ±14 900 1 315 ±4.0 80 ·0.030
·0.011		 170 ±050 22 0
-0062		 71 0
-02		 355 0
-1.0		 28 0
+0.52		 1120 1000 1500 2450
4-6 100 ·0.035
·0.013		 210 ±057 28 90 +0.62
0
400 2 710 ±1.75 1000 ±1.75 375 90 170 ±050 25 81 400 35 1260 1050 1700 2600
4-12 335 110 210 ±0.57 28 100
450 2 800 1120 400 100 90 450 1420 1120 1900 2900
4 355 120 32 0
-0.062		 109
6-12 130 ·0.040
·0.015		 250 119
500 2 900 ±2.10 1250 ±2.10 560 110 ·0.035
·0.013		 210 28 0
-0.052		 100 500 42 1600 1200 2200 3300
4 475 130 ·0.040
·0.015		 250 32 0
-0.062		 119
6-12 140 36 128 0
-03
560 2 1000 1400 560 130 32 119 0
-02		 560 1800 1260 2400 3560
4 500 150 36 138 0
-03
6-12 160 300 ±065 40 147
630 2 1120 1600 560 140 250 ±057 38 128 630 48 2000 1360 2720 3800
4 530 170 300 ±0.65 40 157
6-12 180 45 165



Data technegol modur asyncronaidd tri cham foltedd uchel cyfres YKK (10KV)
Math Pŵer â sgôr
(kW)		 Cerrynt graddedig
(A)		 Dan lwyth graddedig Clo torque Cloi cerrynt Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth Rtanard) (Gwerth Rtanard) (Gwerth Rtanard)
YKK400-2 200 15 93.1 0.85 2980 0.6 7.0 1.8 3320
YKK400-2 220 16 93.2 0.85 2980 0.6 7.0 1.8 3380
YKK400-2 250 18 93.3 0.85 2980 0.6 7.0 1.8 3430
YKK400-2 280 20 93.4 0.85 2980 0.6 7.0 1.8 3480
YKK450-2 315 23 93.5 0.86 2980 0.6 7.0 1.8 3500
YKK450-2 355 26 93.6 0.86 2980 0.6 7.0 1.8 3530
YKK450-2 400 29 93.8 0.86 2980 0.6 7.0 1.8 3560
YKK450-2 450 32 93.9 0.86 2980 0.6 7.0 1.8 3680
YKK450-2 500 36 94.0 0.86 2980 0.6 7.0 1.8 3790
YKK450-2 560 40 94.1 0.86 2980 0.6 7.0 1.8 3900
YKK450-2 630 43.2 94.7 0.89 2980 0.6 7.0 1.8 4360
YKK450-2 710 48.5 94.8 0.86 2980 0.6 7.0 1.8 4560
YKK500-2 630 45 94.2 0.89 2985 0.6 7.0 1.8 5230
YKK500-2 710 50 94.5 0.87 2985 0.6 7.0 1.8 5360
YKK500-2 800 56 94.6 0.87 2985 0.6 7.0 1.8 5550
YKK500-2 900 63 94.7 0.87 2985 0.6 7.0 1.8 5640
YKK500-2 1000 70 94.8 0.87 2985 0.6 7.0 1.8 5870
YKK500-2 1120 75 95.1 0.89 2983 0.6 7.0 1.8 6040
YKK500-2 1250 84 95.3 0.89 2983 0.6 7.0 1.8 6240
YKK560-2 1120 78 95.0 0.87 2983 0.6 7.0 1.8 6950
YKK560-2 1250 86 95.2 0.88 2983 0.6 7.0 1.8 7110
YKK560-2 1400 97 95.3 0.88 2983 0.6 7.0 1.8 7280
YKK560-2 1600 109 95.2 0.89 2983 0.6 7.0 1.8 7770
YKK560-2 1800 122 95.5 0.89 2983 0.6 7.0 1.8 7940
YKK630-2 1600 109 95.4 0.89 2983 0.6 7.0 1.8 9640
YKK630-2 1800 122 95.5 0.89 2983 0.6 7.0 1.8 9870
YKK630-2 2000 136 95.6 0.89 2983 0.6 7.0 1.8 10140
YKK630-2 2240 150 95.6 0.90 2983 0.6 7.0 1.8 10470
YKK630-2 2500 167 95.6 0.90 2983 0.6 7.0 1.8 10960
YKK630-2 2800 187 95.6 0.90 2983 0.6 7.0 1.8 11520
YKK400-4 220 16 92.1 0.84 1488 0.7 7.0 1.8 3070
YKK400-4 250 18 92.3 0.85 1488 0.7 7.0 1.8 3120
YKK400-4 280 21 92.5 0.85 1488 0.7 7.0 1.8 3170
YKK400-4 315 23 92.7 0.85 1488 0.7 7.0 1.8 3230
YKK400-4 356 26 92.9 0.85 1488 0.7 7.0 1.8 3300
YKK450-4 220 17 92.9 0.82 1488 0.7 6.5 1.8 3480
YKK450-4 250 19 93.0 0.83 1488 0.7 6.5 1.8 3510
YKK450-4 280 21 93.1 0.83 1488 0.7 6.5 1.8 3540
YKK450-4 315 23 93.2 0.84 1488 0.7 6.5 1.8 3570
YKK450-4 355 26 93.3 0.85 1488 0.7 6.5 1.8 3600



Data technegol modur asyncronaidd tri cham foltedd uchel cyfres YKK (10KV)
Math Pŵer â sgôr
(kW)		 Cerrynt graddedig
(A)		 Dan lwyth graddedig Clo torque Cloi cerrynt Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK450-4 400 29 93.5 0.85 1488 0.7 6.5 1.8 3630
YKK450-4 450 33 93.8 0.85 1488 0.7 6.5 1.8 3690
YKK450-4 500 36 93.9 0.85 1488 0.7 6.5 1.8 3740
YKK450-4 560 40 94.1 0.86 1488 0.7 6.5 1.8 3890
YKK450-4 630 45 94.2 0.86 1488 0.7 6.5 1.8 4040
YKK500-4 560 41 94.0 0.85 1488 0.7 6.5 1.8 4460
YKK500-4 630 46 94.2 0.85 1488 0.7 6.5 1.8 4550
YKK500-4 710 51 94.4 0.88 1488 0.7 6.5 1.8 4690
YKK500-4 800 57 94.5 0.86 1488 0.7 6.5 1.8 4820
YKK500-4 900 63 94.6 0.87 1488 0.7 6.5 1.8 5120
YKK500-4 1000 70 94.8 0.87 1488 0.7 6.5 1.8 5360
YKK560-4 900 63 94.6 0.87 1491 0.6 6.5 1.8 5490
YKK560-4 1000 70 94.7 0.87 1491 0.6 6.5 1.8 6370
YKK560-4 1120 78 95.0 0.87 1491 0.6 6.5 1.8 6570
YKK560-4 1250 86 95.1 0.88 1491 0.6 6.5 1.8 6770
YKK560-4 1400 96 95.4 0.88 1491 0.6 6.5 1.8 7140
YKK560-4 1600 109 95.5 0.88 1491 0.6 6.5 1.8 7500
YKK630-4 1400 97 95.2 0.88 1491 0.6 6.5 1.8 7570
YKK630-4 1600 110 95.3 0.88 1491 0.6 6.5 1.8 7870
YKK630-4 1800 124 95.4 0.88 1491 0.6 6.5 1.8 8270
YKK630-4 2000 138 95.5 0.88 1491 0.6 6.5 1.8 8670
YKK630-4 2240 152 95.5 0.89 1491 0.6 6.5 1.8 9170
YKK630-4 2500 169 95.5 0.89 1491 0.6 6.5 1.8 9670
YKK400-6 200 16 91.9 0.77 991 0.7 6.0 1.8 3020
YKK400-6 220 18 92.1 0.77 991 0.7 6.0 1.8 3110
YKK400-6 250 20 92.2 0.77 991 0.7 6.0 1.8 3240
YKK450-6 220 18 92.3 0.79 991 0.7 6.0 1.8 3020
YKK450-6 250 20 92.4 0.79 991 0.7 6.0 1.8 3420
YKK450-6 280 22 92.5 0.79 991 0.7 6.0 1.8 3500
YKK450-6 315 24 92.6 0.81 991 0.7 6.0 1.8 3600
YKK450-6 355 27 92.9 0.82 991 0.7 6.0 1.8 3750
YKK450-6 400 30 93.1 0.82 991 0.7 6.0 1.8 3300
YKK450-6 450 33 94.4 0.84 988 0.7 6.0 1.8 4000
YKK450-6 500 36 94.5 0.84 988 0.7 6.0 1.8 4200
YKK500-6 450 34 93.3 0.82 991 0.7 6.0 1.8 4500
YKK500-6 500 38 93.7 0.82 991 0.7 6.0 1.8 4650
YKK500-6 560 42 93.9 0.83 991 0.7 6.0 1.8 4800
YKK500-6 630 47 94.2 0.83 991 0.7 6.0 1.8 5000
YKK500-6 710 51.5 94.4 0.84 991 0.7 6.0 1.8 5200
YKK560-6 710 53 94.4 0.83 983 0.7 65 1.8 6400



Data technegol modur asyncronaidd tri cham foltedd uchel cyfres YKK (10KV)
Math Pŵer â sgôr
(kW)		 Cerrynt graddedig
(A)		 Llwyth graddedig Clo torque Cloi cerrynt Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque patio Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK560-6 800 59 94.5 0.83 993 0.7 6.5 1.8 6700
YKK560-6 900 66 94.7 0.84 993 0.7 6.5 1.8 6950
YKK560-6 1000 73 94.8 0.84 993 0.7 6.5 1.8 7300
YKK560-6 1120 80 94.9 0.85 993 0.7 6.5 1.8 7600
YKK560-6 1250 89 95.1 0.85 993 0.7 6.5 1.8 7900
YKK630-6 1120 81 94.9 0.84 993 0.7 6.5 1.8 8480
YKK630-6 1250 90 96.0 0.85 993 0.7 6.5 1.8 8680
YKK630-6 1400 100 95.1 0.85 993 0.7 6.5 1.8 9080
YKK630-6 1600 114 96.3 0.85 993 0.7 6.5 1.8 9480
YKK630-6 1800 126 95.4 0.86 993 0.7 6.5 1.8 10100
YKK450-8 220 19 92.3 0.75 740 0.8 5.5 1.8 3830
YKK450-8 250 21 92.4 0.75 740 0.8 5.5 1.8 3990
YKK450-8 280 24 92.5 0.75 740 0.8 5.5 1.8 4100
YKK450-8 315 26 92.7 0.76 740 0.8 5.5 1.8 4250
YKK500-8 280 24 92.5 0.75 740 0.8 5.5 1.8
YKK500-8 315 26 92.7 0.76 740 0.8 5.5 1.8 4360
YKK500-8 355 29 93.0 0.76 740 0.8 5.5 1.8 4470
YKK500-8 400 32 90.1 0.77 740 0.8 5.5 1.8 4630
YKK500-8 450 36 93.4 0.77 740 0.8 5.5 1.8 4990
YKK500-8 500 39 98.7 0.79 740 0.8 5.5 1.8 5150
YKK500-8 560 43.5 93.9 0.79 740 0.8 5.5 1.8 5300
YKK560-8 500 40 93.6 0.78 745 0.7 6.0 1.8 6070
YKK560-8 560 44 93.7 0.78 745 0.7 6.0 1.8 6410
YKK560-8 650 48 94.2 0.81 745 0.7 6.0 1.8 6670
YKK560-8 710 54 94.3 0.81 745 0.7 6.0 1.8 6870
YKK560-8 800 58.8 94.5 0.83 745 0.7 6.0 1.8 7080
YKK560-8 900 66.2 94.5 0.83 745 0.7 6.0 1.8 7350
YKK630-8 800 61 94.4 0.81 745 0.7 6.0 1.8 7650
YKK630-8 900 68 94.5 0.81 745 0.7 6.0 1.8 8330
YKK630-8 1000 74 94.8 0.82 745 0.7 6.0 1.8 8680
YKK630-8 1120 83 95.0 0.82 745 0.7 6.0 1.8 8910
YKK630-8 1250 91 95.1 0.83 745 0.7 6.0 1.8 9230
YKK630-8 1400 102 95.1 0.83 745 0.7 6.0 1.8 9610
YKK500-10 220 19 92.1 0.72 591 0.8 5.5 1.8 4440
YKK500-10 250 22 92.2 0.72 591 0.8 5.5 1.8 4740
YKK500-10 280 24 92.3 0.73 591 0.8 5.5 1.8 4830
YKK500-10 315 27 92.6 0.73 581 0.8 5.5 1.8 5020



Data technegol modur asyncronaidd tri cham foltedd uchel cyfres YKK (10KV)
Math Pŵer â sgôr
(kW)		 Cerrynt graddedig
(A)		 Llwyth graddedig Clo torque Cloi cerrynt Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK500-10 365 30 92.8 0.74 591 0.8 5.5 1.8 5240
YKK500-10 400 34 93.0 0.74 591 0.8 5.5 1.8 5410
YKK500-10 450 36.3 94.0 0.76 591 0.8 5.5 1.8 5530
YKK560-10 450 37 93.2 0.76 595 0.7 6.0 1.8 6310
YKK560-10 500 41 93.4 0.76 595 0.7 6.0 1.8 6620
YKK560-10 560 45 93.5 0.77 595 0.7 6.0 1.8 6830
YKK560-10 630 51 93.7 0.77 595 0.7 6.0 1.8 7090
YKK560-10 710 55.9 94.0 0.78 595 0.7 6.0 1.8 7360
YKK630-10 710 57 93.9 0.77 595 0.7 6.0 1.8 8150
YKK630-10 800 62 94.3 0.79 595 0.7 6.0 1.8 8260
YKK630-10 900 70 94.5 0.79 595 0.7 6.0 1.8 8530
YKK650-10 1000 77 94.6 0.79 595 0.7 6.0 1.8 8800
YKK630-10 1120 86 95.2 0.79 595 0.7 6.0 1.8 910
YKK500-12 220 20 92.0 0.71 491 0.8 5.5 1.8 5180
YKK500-12 250 22 92.1 0.71 491 0.8 5.5 1.8 5260
YKK500-12 280 25 92.2 072 491 0.8 5.5 1.8 5410
YKK500-12 315 26.9 92.6 0.73 491 0.8 5.5 1.8 5690
YKK560-12 315 28 92.3 0.72 493 0.7 6.0 1.8 6410
YKK560-12 355 31 92.5 0.72 493 0.7 6.0 1.8 6510
YKK560-12 400 35 92.7 0.72 493 0.7 6.0 1.8 6560
YKK560-12 450 39 92.9 0.72 493 0.7 6.0 1.8 6830
YKK560-12 500 42.3 93.2 0.73 493 0.7 6.0 1.8 7090
YKK630-12 500 43 93.2 0.72 493 0.7 6.0 1.8 8420
YKK630-12 560 47 93.5 0.73 493 0.7 6.0 1.8 862
YKK630-12 630 53 93.7 0.73 493 0.7 6.0 1.8 8820
YKK630-12 710 60 93.9 0.73 493 0.7 6.0 1.8 9200
YKK630-12 800 65.3 94.2 0.75 493 0.7 6.0 1.8 9470
YKK630-12 900 73.5 94.2 0.75 493 0.7 6.0 1.8 9830



page-1088-641



Ymddangosiad modur asyncronig tri cham foltedd uchel cyfres YKK a dimensiynau gosod (10KV)
Ffrâm Pwyliaid Dimensiynau gosod a goddefiannau Dimensiynau (terfyn)
A B C D E F G H K AD AD HD L
Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad Maint sylfaenol Cyfyngu ar wyriad
400 2 710 ±1.75 1000 ±1.75 375 ±4.0 90   170 ±0.50 25 0
-0.052		 81 0
-0.2		 400 0
-1.0		 35 +062

0		 1260 1050 1700 2600
4-6 335 110 210 +057 28 100 2400
450 2 800 1120 400 90 ·0.035
·0.013		 170 ±050 25 81 450 35 1300 1100 1900 2600
4-8 355 110 210 ±0.57 28 100
500 2 900 ±2.10 1250 ±2.10 560 110 210 28 90 500 42 1420 1150 2200 2900
4 475 120 32 0
-0.062		 109
6-12 130 ·0.040
·0.015		 250 119
560 2 1000 1400 560 130 250 32 119 560 42 1600 1250 2400 3200
4 500 150 36 138 0
-03
6-12 160 300 ±0.68 40 147
630 2 1120 1600 560 140 250 ±0.57 36 128 630 48 1800 1300 2700 3500
4 530 170 300 ±0.65 40 157
6-12 180 45 165





Cyfres YKK (H710-1000) modur asyncronig tri cham foltedd uchel mawr



Trosolwg Cynnyrch



Mae gan fodur asyncronaidd tri cham foltedd uchel cyfres YKK (H710-1000) bedwar uchder canol o H710 i H1000. Y foltedd yw 6V a 10KV.
Datblygir y gyfres hon o moduron gyda thechnoleg dadansoddi uwch. Defnyddir deunyddiau o ansawdd uchel a thechnoleg prosesu gwyddonol mewn gweithgynhyrchu, sy'n golygu bod gan y gyfres o foduron fanteision effeithlonrwydd uchel, sŵn isel, dirgryniad isel, dibynadwyedd a gosod a chynnal a chadw cyfleus.
Mae'r gyfres hon o foduron yn cydymffurfio'n llawn â GB75 rhyngwladol "Graddfa a Pherfformiad Moduron Cylchdroi", GB10009 "Dull Penderfynu a Therfynau Sŵn Modur Cylchdroi", GB10093 "Dull Penderfynu a Therfynau Sŵn Modur Cylchdroi Rhan 3: Cyfyngiadau Sŵn", GB10008 " Mesur, Gwerthuso a Therfynau Dirgryniad Mecanyddol Moduron gyda Chanolfan Siafft Uchder o 50mm ac Uchod" a safonau CE cysylltiedig.



Cyfarwyddiadau archebu



Wrth archebu, nodwch y math o fodur, rhif polyn, foltedd cyfradd pŵer graddedig, amlder graddedig, gradd amddiffyn, dull oeri, math mowntio, math blwch terfynell, uchder, a thymheredd yr amgylchedd; os oes gennych ofynion technegol eraill ar wahân i'r safonau cenedlaethol ar y modur y bydd ein cwmni'n ei ddylunio'n benodol ar eich cyfer chi, a'i roi ar waith ar ôl llofnodi'r cytundeb technegol.

YKK H710-1000 -



◆ Paramedrau sylfaenol



(1) Foltedd graddedig: 6KV neu 10KV (gellir cynhyrchu foltedd arbennig yn ôl anghenion)
(2) Amledd graddedig: 50Hz (gellir cynhyrchu 60Hz yn ôl anghenion)
(3) System weithio: S1 gweithio'n barhaus
(4) Lefel amddiffyn: IP44 neu IP54
(5) Dull oeri: IC611 (modur amlder newidiol foltedd uchel yw IC616 neu C666)
(6) Dull gosod strwythur modur: IMB3
(7) Lefel inswleiddio: lefel F
◆ Disgrifiad o'r model (gan gymryd YKK710-4 fel enghraifft)
Modur asyncronig tri cham cawell Y-gwiwer; KK aer-i-aer oerach; 710-yn cynrychioli uchder canolfan y modur o 710mm; Mae 4-yn cynrychioli 4 lefel.

20240710100002
20240710100133

◆ Nodweddion strwythurol



(1) Mae'r gyfres hon o foduron yn mabwysiadu ymddangosiad math o flwch, ac mae'r sylfaen wedi'i weldio o blatiau dur, sy'n golygu bod gan y modur nodweddion anhyblygedd da a phwysau ysgafn. Mae dyluniad optimized y strwythur modur hefyd yn gwneud y gyfres o foduron yn hawdd i'w gosod a'u cynnal.
(2) Mae gan foduron cyfres YKK oeryddion aer-i-aer ar ben y modur.
(3) Mae'r dyrniadau stator a rotor yn cael eu dyrnu o ddalennau dur silicon di-rolio oer nad ydynt yn canolbwyntio ar golled isel. Mae'r stator yn mabwysiadu strwythur pwysau allanol, mae'r weindio stator yn mabwysiadu deunydd inswleiddio dosbarth F, ac mae pennau'r coil yn cael eu gosod a'u clymu'n ddibynadwy. Ar ôl i weirio'r coil gael ei gwblhau, mae angen iddo gael prawf foltedd pwls rhyng-dro a mabwysiadu'r broses paent di-doddydd trwytho pwysedd gwactod rhyngwladol datblygedig (VP1).
(4) Mae gan rotor cawell y wiwer ddau strwythur: alwminiwm cast a bariau copr. Fe'i gweithgynhyrchir gan ddefnyddio prosesau weldio neu alwminiwm cast datblygedig a dibynadwy ac mae wedi cael gwiriad cydbwyso deinamig, felly mae'r modur yn rhedeg yn llyfn ac yn ddibynadwy.
(5) Mae'r Bearings yn mabwysiadu dwy ffurf strwythurol: Bearings rholio a Bearings llithro, yn dibynnu ar bŵer a chyflymder y modur.

◆ Dechrau perfformiad



Gellir defnyddio'r gyfres hon o foduron i yrru peiriannau cyffredinol amrywiol. Os yw'r peiriant sy'n cael ei yrru yn bwmp dŵr neu'n gefnogwr wedi'i ddechrau â llwyth ysgafn, a bodlonir yr amodau canlynol:
(a) Nid yw foltedd terfynol y modur yn ystod y broses gychwyn yn llai nag 80% o'r foltedd graddedig;
(b) Nid yw trorym gwrthiant y gefnogwr ar gyflymder graddedig y modur yn fwy na 23% o trorym graddedig y modur;
Os yw'r llwyth yn fwy na'r gofynion uchod, neu os defnyddir y modur i yrru offer mecanyddol eraill, megis melinau glo, cludwyr gwregys, melinau rholio, winshis ac offer cychwyn llwythi trwm eraill, mae'n ofynnol i'r defnyddiwr ddarparu gofynion technegol manwl, gan gynnwys y foltedd terfynell yn ystod y broses gychwyn modur, cromlin trorym gwrthiant y llwyth a momentyn llwyth syrthni (trosi i'r cyflymder modur), ac ati, i ddadansoddi a phenderfynu a oes angen dyluniad arbennig i fodloni'r gofynion llwyth.

20240710100156
Cyfres data technegol modur asyncronig cam tri-YKK mawr (6KV)
Gwerth dylunio (bydd y gwerth gwirioneddol yn amodol ar ganlyniadau profion ffatri)
Math Pŵer â sgôr
(kW)		 Stator Cyfredol
(A)		 Llwyth graddedig Stondin trorym Stondin gyfredol Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor Pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK710-4 2500 271 95.1 0.87 1492 0.5 6.5 1.8 10200
YKK710-4 2800 303 95.2 0.87 1492 0.5 6.5 1.8 10700
YKK710-4 3150 339 95.3 0.87 1492 0.5 6.5 1.8 11200
YKK710-4 3550 382 95.4 0.87 1492 0.5 6.5 1.8 11750
YKK800-4 4000 449 95.4 0.87 1492 0.5 6.5 1.8 15910
YKK800-4 4500 504 95.6 0.87 1492 0.5 6.5 1.8 16450
YKK800-4 5000 558 95.7 0.87 1492 0.5 6.5 1.8 17120
YKK900-4 5600 626 95.8 0.88 1492 0.5 6.5 1.8 20800
YKK900-4 6300 701 95.9 0.88 1492 0.5 6.5 1.8 22050
YKK900-4 7100 789 96.0 0.88 1492 0.5 6.5 1.8 22830
YKK710-6 1800 218 94.7 0.84 992 0.6 6.5 1.8 11010
YKK710-6 2000 242 94.8 0.84 992 0.6 6.5 1.8 11480
YKK710-6 2240 271 94.9 0.84 992 0.6 6.5 1.8 12940
YKK710-6 2500 302 95.0 0.84 992 0.6 6.5 1.8 12490
YKK710-6 2800 337 95.2 0.84 992 0.6 6.5 1.8 13190
YKK800-6 2800 337 95.2 0.84 992 0.6 6.5 1.8 14960
YKK800-6 3150 379 95.3 0.84 992 0.6 6.5 1.8 16100
YKK800-6 3550 427 95.4 0.84 992 0.6 6.5 1.8 16530
YKK800-6 4000 480 95.5 0.84 992 0.6 6.5 1.8 16860
YKK900-6 4500 534 95.4 0.85 992 0.6 6.5 1.8 21050
YKK900-6 5000 593 95.5 0.85 992 0.6 6.5 1.8 21980
YKK900-6 5600 664 95.6 0.85 992 0.6 6.5 1.8 23190
YKK1000-6 6300 746 95.7 0.85 992 0.6 6.5 1.8 30030
YKK1000-6 7100 839 95.8 0.85 992 0.6 6.5 1.8 31700
YKK1000-6 8000 945 95.9 0.85 992 0.6 6.5 1.8 32820
YKK710-8 1400 172 94.4 0.83 745 0.6 6.5 1.8 11690
YKK710-8 1600 197 94.5 0.83 745 0.6 6.5 1.8 12800
YKK710-8 1800 221 94.6 0.83 745 0.6 6.5 1.8 13310
YKK710-8 2000 245 94.7 0.83 745 0.6 6.5 1.8 13910
YKK800-8 2000 245 94.7 0.83 745 0.6 6.5 1.8 14960
YKK800-8 2240 274 94.8 0.83 745 0.6 6.5 1.8 15560
YKK800-8 2500 306 94.9 0.83 745 0.6 6.5 1.8 17270
YKK800-8 2800 342 95.0 0.83 745 0.6 6.5 1.8 17550
YKK900-8 3150 379 95.2 0.84 745 0.6 6.5 1.8 20770
YKK900-8 3550 427 95.3 0.84 745 0.6 6.5 1.8 22070
YKK900-8 4000 481 95.4 0.84 745 0.6 6.5 1.8 22860
YKK1000-8 4500 542 95.2 0.84 745 0.6 6.5 1.8 30520
YKK1000-8 5000 601 95.3 0.84 745 0.6 6.5 1.8 31040
YKK1000-8 5600 673 95.4 0.84 745 0.6 6.5 1.8 32770
YKK1000-8 6300 756 95.5 0.84 745 0.6 6.5 1.8 33290
YKK710-10 1250 158 94.0 0.81 593 0.6 6.0 1.8 11080
YKK710-10 1400 177 94.1 0.81 593 0.6 6.0 1.8 11470



cyfres YKK data technegol modur asyncronig tri cham mawr (6KV)
Gwerth dylunio (bydd y gwerth gwirioneddol yn amodol ar ganlyniadau profion ffatri)
Math Pŵer â sgôr
(kW)		 Stator Cyfredol
(A)		 Llwyth graddedig Stondin trorym Stondin gyfredol Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor Pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK710-10 1600 202 94.2 0.81 593 0.6 6.0 1.8 12380
YKK800-10 1800 226 95.0 0.81 593 0.6 6.0 1.8 16250
YKK800-10 2000 250 95.1 0.81 593 0.6 6.0 1.8 16930
YKK800-10 2240 280 95.2 0.81 593 0.6 6.0 1.8 17420
YKK900-10 2500 310 94.9 0.82 593 0.6 6.0 1.8 22050
YKK900-10 2800 346 95.0 0.82 593 0.6 6.0 1.8 22810
YKK900-10 3150 389 95.1 0.82 593 0.6 6.0 1.8 23700
YKK900-10 3550 438 95.2 0.82 593 0.6 6.0 1.8 24740
YKK1000-10 4000 495 94.9 0.82 593 0.6 6.0 1.8 30830
YKK1000-10 4500 556 95.0 0.82 593 0.6 6.0 1.8 31850
YKK1000-10 5000 617 95.1 0.82 593 0.6 6.0 1.8 31980
YKK1000-10 5600 691 95.2 0.82 593 0.6 6.0 1.8 33760
YKK710-12 900 121 93.5 0.77 494 0.6 6.0 1.8 10490
YKK710-12 1000 134 93.6 0.77 494 0.6 6.0 1.8 11730
YKK710-12 1120 150 93.7 0.77 494 0.6 6.0 1.8 12100
YKK800-12 1250 164 94.3 0.78 494 0.6 6.0 1.8 15680
YKK800-12 1400 183 94.5 0.78 494 0.6 6.0 1.8 16670
YKK800-12 1600 209 94.6 0.78 494 0.6 6.0 1.8 18010
YKK800-12 1800 235 94.7 0.78 494 0.6 6.0 1.8 18920
YKK900-12 2000 259 94.2 0.79 494 0.6 6.0 1.8 21770
YKK900-12 2240 290 94.3 0.79 494 0.6 6.0 1.8 22150
YKK900-12 2500 323 94.4 0.79 494 0.6 6.0 1.8 22730
YKK1000-12 2800 361 94.6 0.79 494 0.6 6.0 1.8 30030
YKK1000-12 3150 406 94.7 0.79 494 0.6 6.0 1.8 31270
YKK1000-12 3550 457 94.8 0.79 494 0.6 6.0 1.8 33260
YKK1000-12 4000 514 94.9 0.79 494 0.6 6.0 1.8 35390
YKK710-16 500 74 92.3 0.71 371 0.6 6.0 1.8 10810
YKK710-16 560 83 92.4 0.71 371 0.6 6.0 1.8 11310
YKK710-16 630 93 92.5 0.71 371 0.6 6.0 1.8 11810
YKK710-16 710 104 92.6 0.71 371 0.6 6.0 1.8 12190
YKK800-16 800 115 93.5 0.72 371 0.6 6.0 1.8 14620
YKK800-16 900 128 93.6 0.72 371 0.6 6.0 1.8 15280
YKK800-16 1000 143 93.7 0.72 371 0.6 6.0 1.8 15700
YKK800-16 1120 160 93.8 0.72 371 0.6 6.0 1.8 16340
YKK900-16 1250 178 93.0 0.73 371 0.6 6.0 1.8 21180
YKK900-16 1400 199 93.1 0.73 371 0.6 6.0 1.8 22240
YKK900-16 1600 227 93.2 0.73 371 0.6 6.0 1.8 22910
YKK1000-16 1800 255 93.3 0.73 371 0.6 6.0 1.8 29590
YKK1000-16 2000 283 93.4 0.73 371 0.6 5.5 1.8 30470
YKK1000-16 2240 316 93.5 0.73 371 0.6 5.5 1.8 31680



cyfres YKK data technegol modur asyncronig tri cham mawr (10KV)
Gwerth dylunio (mae gwerth gwirioneddol yn amodol ar ganlyniadau profion ffatri)
Math Pŵer â sgôr
(kW)		 Stator Cyfredol
(A)		 Llwyth graddedig Stondin trorym Stondin gyfredol Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cosφ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK710-4 2240 155 95.1 0.87 1492 0.5 6.5 1.8 10320
YKK710-4 2500 172 95.2 0.87 1492 0.5 6.5 1.8 10920
YKK710-4 2800 192 95.3 0.87 1492 0.5 6.5 1.8 11520
YKK710-4 3150 216 95.4 0.87 1492 0.5 6.5 1.8 12120
YKK710-4 3550 245 95.4 0.87 1492 0.5 6.5 1.8 12920
YKK800-4 3550 245 95.4 0.87 1492 0.5 6.5 1.8 17390
YKK800-4 4000 276 95.6 0.87 1492 0.5 6.5 1.8 18030
YKK800-4 4500 309 95.7 0.87 1492 0.5 6.5 1.8 18660
YKK800-4 5000 341 95.7 0.87 1492 0.5 6.5 1.8 19320
YKK900-4 5600 383 95.8 0.88 1492 0.5 6.5 1.8 19950
YKK900-4 6300 430 95.9 0.88 1492 0.5 6.5 1.8 20600
YKK900-4 7100 483 96.0 0.88 1492 0.6 6.5 1.8 21020
YKK710-6 1800 134 94.5 0.82 992 0.6 6.5 1.8 10320
YKK710-6 2000 149 94.6 0.82 992 0.6 6.5 1.8 11420
YKK710-6 2240 167 94.7 0.82 992 0.6 6.5 1.8 11840
YKK710-6 2500 186 94.8 0.82 992 0.6 6.5 1.8 12340
YKK800-6 2500 186 94.8 0.82 992 0.6 6.5 1.8 14530
YKK800-6 2800 208 94.9 0.82 992 0.6 6.5 1.8 15010
YKK800-6 3150 234 95.0 0.82 992 0.6 6.5 1.8 15320
YKK900-6 3550 257 95.0 0.84 992 0.6 6.5 1.8 19290
YKK900-6 4000 290 95.1 0.84 992 0.6 6.5 1.8 21270
YKK900-6 4500 325 95.2 0.84 992 0.6 6.5 1.8 23700
YKK900-6 5000 361 95.3 0.84 992 0.6 6.5 1.8 27860
YKK1000-6 5600 403 95.5 0.84 992 0.6 6.5 1.8 28410
YKK1000-6 6300 453 95.6 0.84 992 0.6 6.5 1.8 29370
YKK1000-6 7100 510 95.7 0.84 992 0.6 6.5 1.8 29930
YKK710-8 1250 96 93.9 0.80 745 0.6 6.5 1.8 12090
YKK710-8 1400 108 94.0 0.80 745 0.6 6.5 1.8 12670
YKK710-8 1600 123 94.1 0.80 745 0.6 6.5 1.8 13210
YKK710-8 1800 138 94.2 0.81 745 0.6 6.5 1.8 13750
YKK800-8 1800 138 94.2 0.81 745 0.6 6.5 1.8 15960
YKK800-8 2000 152 94.3 0.81 745 0.6 6.5 1.8 17060
YKK800-8 2240 170 94.4 0.81 745 0.6 6.5 1.8 17750
YKK900-8 2500 187 94.5 0.82 745 0.6 6.5 1.8 18240
YKK900-8 2800 209 94.6 0.82 745 0.6 6.5 1.8 19900
YKK900-8 3150 235 94.7 0.82 745 0.6 6.5 1.8 21220
YKK1000-8 3550 264 94.8 0.82 745 0.6 6.5 1.8 21450
YKK1000-8 4000 297 94.9 0.82 745 0.6 6.5 1.8 22300
YKK1000-8 4500 334 95.0 0.82 745 0.6 6.5 1.8 22860
YKK710-10 1120 89 93.5 0.78 595 0.6 6.0 1.8 11390
YKK710-10 1250 99 93.6 0.78 595 0.6 6.0 1.8 11820



cyfres YKK data technegol modur asyncronig tri cham mawr (10KV)
Gwerth dylunio (bydd y gwerth gwirioneddol yn amodol ar ganlyniadau profion ffatri)
Math Pŵer â sgôr
(kW)		 Stator Cyfredol
(A)		 Llwyth graddedig Stondin trorym Stondin gyfredol Uchafswm trorym Pwysau
(kg)
Effeithlonrwydd Ffactor Pŵer Cyflymder graddedig Torque graddedig Cerrynt graddedig Torque graddedig
(%) (Cos φ) (r/mun) (Gwerth safonol) (Gwerth safonol) (Gwerth safonol)
YKK710-10 1400 110 93.7 0.78 595 0.6 6.0 1.8 12420
YKK800-10 1600 125 93.8 0.79 595 0.6 6.0 1.8 16590
YKK800-10 1800 141 93.9 0.79 595 0.6 6.0 1.8 18240
YKK800-10 2000 156 94.0 0.79 595 0.6 6.0 1.8 20160
YKK900-10 2240 170 94.1 0.81 595 0.6 6.0 1.8 23770
YKK900-10 2500 190 94.2 0.81 595 0.6 6.0 1.8 26040
YKK900-10 2800 212 94.3 0.81 595 0.6 6.0 1.8 27690
YKK1000-10 3150 238 94.4 0.81 595 0.6 6.0 1.8 28730
YKK1000-10 3550 268 94.5 0.81 595 0.6 6.0 1.8 29330
YKK710-12 800 69 93.0 0.73 494 0.6 6.0 1.8 11150
YKK710-12 900 77 93.1 0.73 494 0.6 6.0 1.8 12120
YKK710-12 1000 85 93.2 0.73 494 0.6 6.0 1.8 12700
YKK800-12 1120 92 93.2 0.76 494 0.6 6.0 1.8 16800
YKK800-12 1250 102 93.3 0.76 494 0.6 6.0 1.8 17690
YKK800-12 1400 114 93.4 0.76 494 0.6 6.0 1.8 18630
YKK900-12 1600 130 93.5 0.79 494 0.6 6.0 1.8 21560
YKK900-12 1800 141 93.6 0.79 494 0.6 6.0 1.8 22990
YKK900-12 2000 156 93.7 0.79 494 0.6 6.0 1.8 24330
YKK1000-12 2240 177 93.8 0.78 494 0.6 6.0 1.8 24870
YKK1000-12 2500 198 93.9 0.78 494 0.6 6.0 1.8 25150
YKK1000-12 2800 221 94.0 0.78 494 0.6 6.0 1.8 25410
YKK1000-12 3150 248 94.4 0.78 494 0.6 6.0 1.8 25820
YKK710-16 500 46 92.0 0.69 371 0.6 6.0 1.8 13620
YKK710-16 560 51 92.1 0.69 371 0.6 6.0 1.8 14500
YKK710-16 630 58 92.1 0.69 371 0.6 6.0 1.8 15390
YKK800-16 710 64 92.3 0.70 371 0.6 6.0 1.8 17020
YKK800-16 800 72 92.4 0.70 371 0.6 6.0 1.8 18240
YKK800-16 900 81 92.5 0.70 371 0.6 6.0 1.8 19560
YKK800-16 1000 90 92.6 0.70 371 0.6 6.0 1.8 20450
YKK900-16 1120 100 92.7 0.70 371 0.6 6.0 1.8 20900
YKK900-16 1250 112 92.8 0.70 371 0.6 6.0 1.8 22660
YKK900-16 1400 125 92.9 0.70 371 0.6 6.0 1.8 23770
YKK1000-16 1600 140 93.0 0.71 371 0.6 6.0 1.8 24370
YKK1000-16 1800 158 93.1 0.71 371 0.6 6.0 1.8 24740
YKK1000-16 2000 175 93.2 0.71 371 0.6 6.0 1.8 25060

page-1108-617





Cyfres YKK mawr foltedd uchel tri cham ymddangosiad modur asyncronaidd a dimensiynau gosod
Ffrâm Dimensiynau gosod a goddefiannau Dimensiynau (terfyn)
A B C D E F G H K AC HD L
Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad Sylfaenol
maint		 Cyfyngu ar wyriad
710 1400 ±2.8 1800 ±2.8 530 ±4.2 200 ±0.046
±0.017		 350 ±0.70 45 0
-0.062		 210 0
-0.062		 710 0
-1.5		 56 +0.62
0		 2620 2700 3500
800 1600 2000 220 50 231 800 2900 3000 3900
900 1800 ±3.5 2240 ±3.5 600 250 410 ±0.77 56 0
-0.074		 262 0
-0.074		 900 66 3100 3250 4000
1000 2000 2500 280 ±0.052
±0.020		 470 63 292 1000 3300 3650 4804



Dull gosod




Strwythur a math gosod
(cod IM))		 IM B3 IM B8 IM B5 IM B6 IM V5 IM V1 IM B7 IM V6 IM V3
Diagram gosod productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400
Maint y ffrâm 63-450 63-160 63-280 63-160 63-160 63-450 63-160 63-160 63-160
Strwythur a math gosod
(cod IM))		 IM V37 IM V17 IM B34 IM V19 IM V18 IM B14 IM V35 IM V15 IM B35
Diagram gosod productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400 productcate-400-400
Maint y ffrâm 63-132 63-13 63-132 63-132 63-132 63-132 63-160 63-160 63-450
